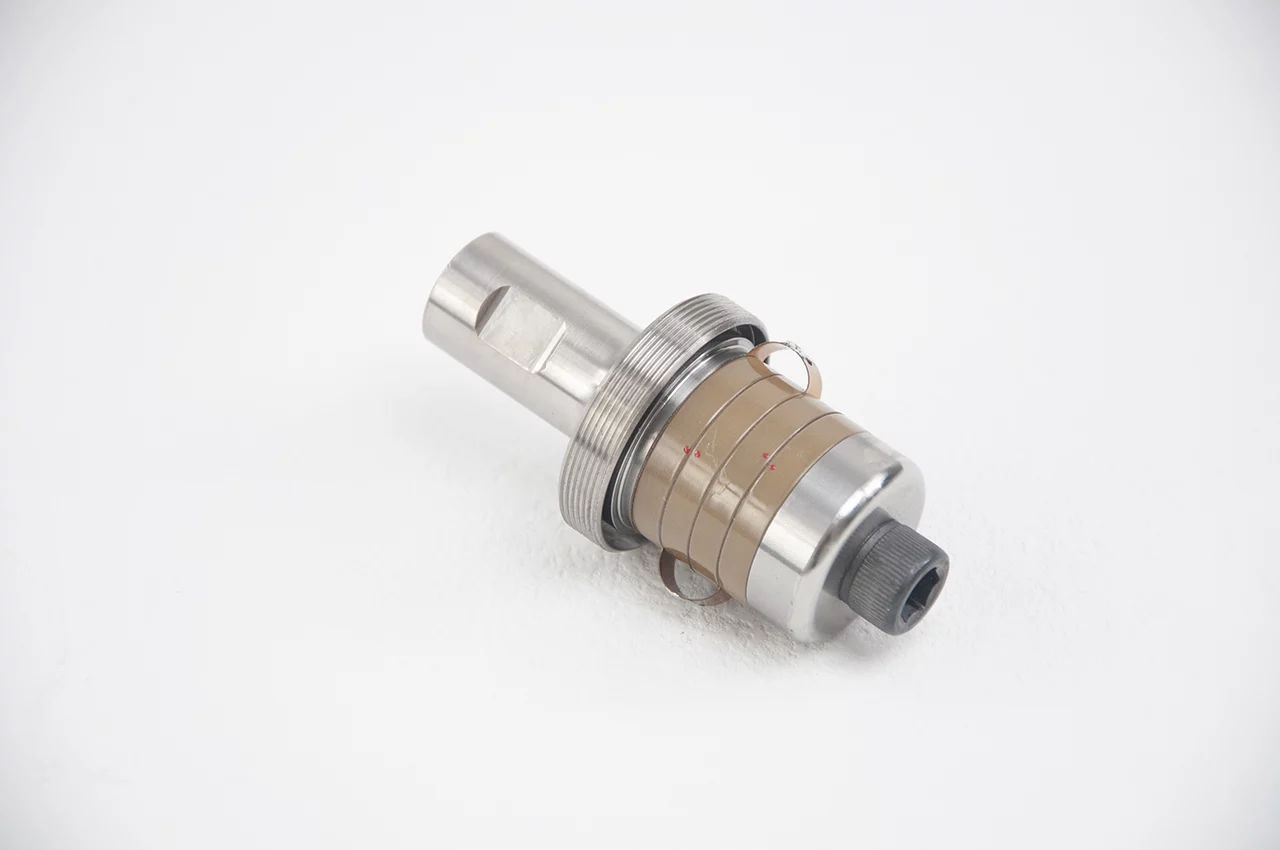

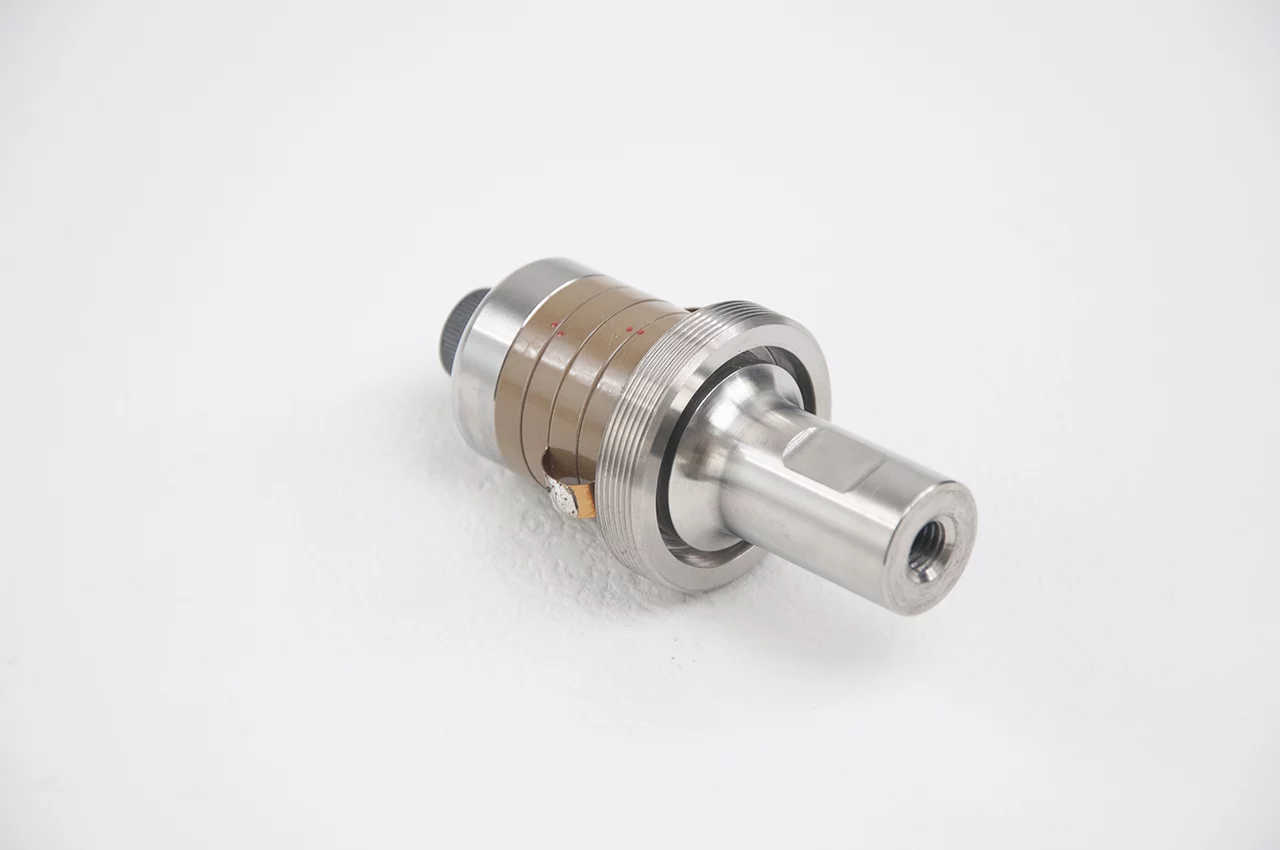

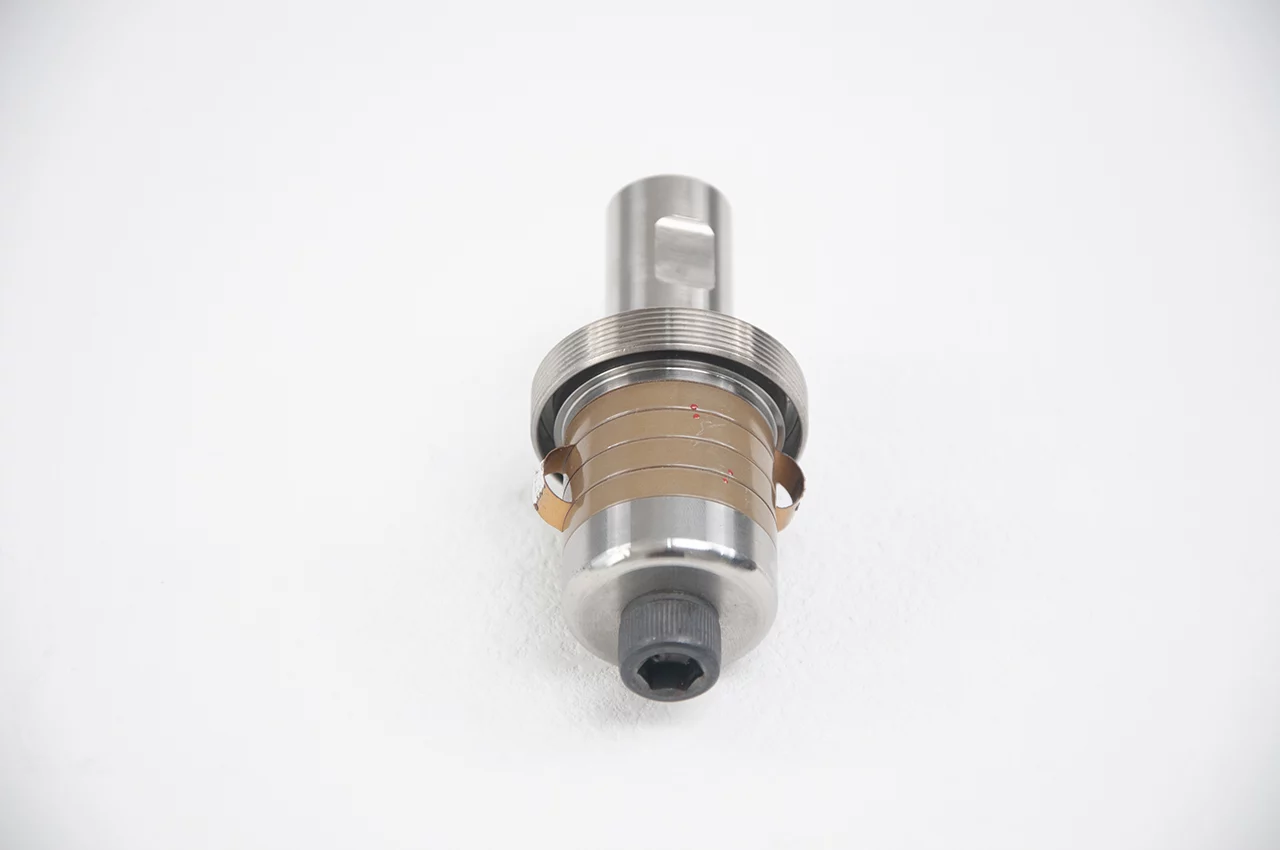

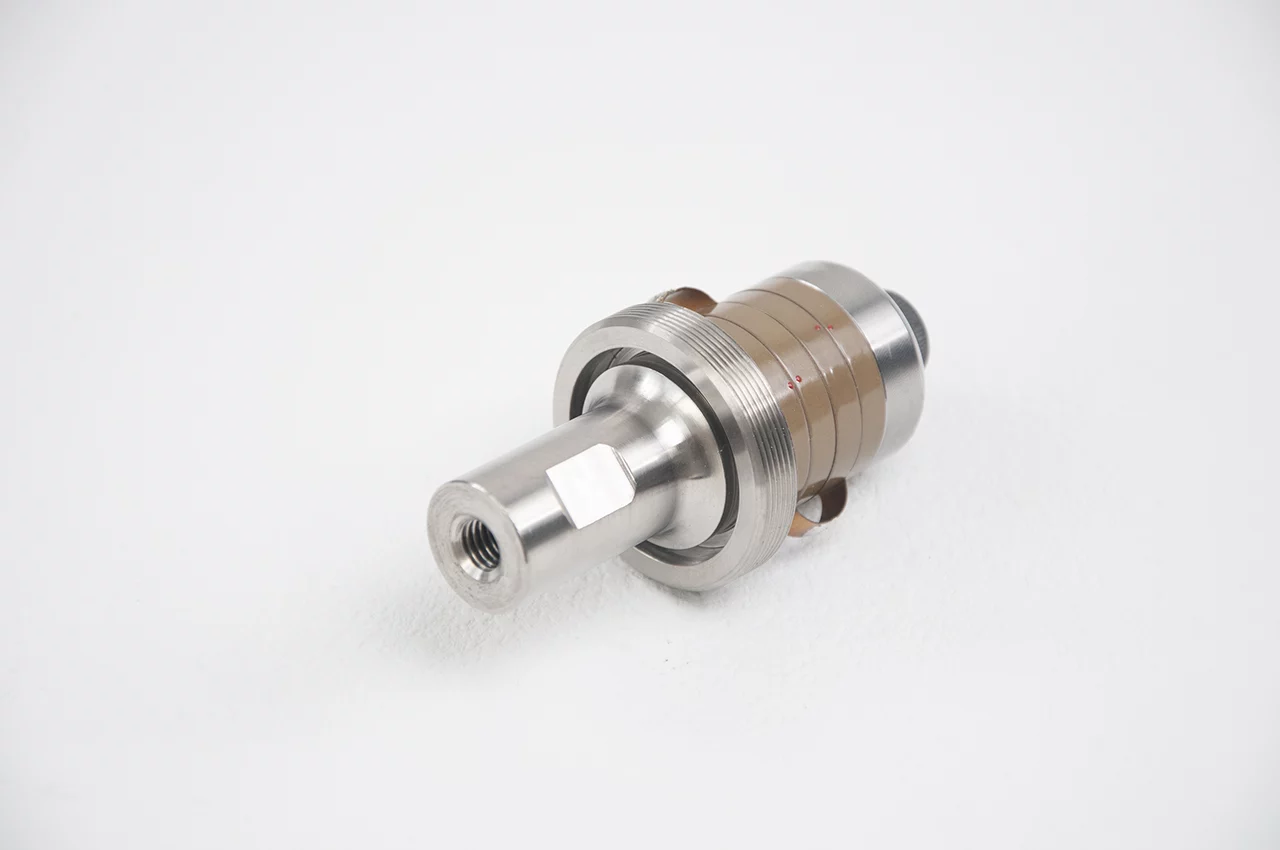

30kHz 1200Watt F30-ST-1
Original price was: $250.00.$230.00Current price is: $230.00.
8% Off
- Compatible with Branson, Telsonic, Sonikks and Misonix, Rico Welder,
- Poreless, high-density, military-grade piezoceramics
- Excellent electro-acoustic conversion efficiency
- Minimal thermal dissipation and power losses
- Large range of working temperature &low resonance impedance and heat productivity
- Easy to installation & High reliablity
- For bulk order price please contact our sales expert.
Description
Technical Details
Electrical Specification | Data Result |
---|---|
Transducer Model No.: | 30kHz-1200Watt F30-ST-1 |
Frequency (Fs ± 0.5kHz) | 30 kHz |
Transducer’s Maximal Diameter: Maximum Height /Length: |
Φ40 mm 83 mm |
Flange Size: | Φ40 mm |
Piezoceramic Ring Diameter (mm) | Φ30 mm |
Piezoceramic Ring Quantity (pc) | 4 Pcs |
Impedance (Ω) | Transducer : 3 Ω |
Capacitance (C±10%pF) | 5700 pF (P8 ) |
Input Power (Watt) Max | Rated Power: 1200 Watt |
Amplitude (μmp-p) | Transducer : 12 μmp-p |
Front Mass Metal | Titanium Alloy |
Back Mass Metal | Titanium Alloy |
Joint Bolt /Gain size | 3/8″ or M8 Default Type: M8 |
Net Weight (gram) | 245 gram |
Total Height /Length (mm) | 83 mm |
Remarks: Available optional accessaries: |
Aluminum Booster Titanium Horn /Sonotrode Ultrasonic Generator (CE) |
* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.
* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.
* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.
for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-170-0524-8000 or send us email.
Additional information
Weight | 0.3 kg |
---|---|
Dimensions | 9 × 4 × 4 cm |
Delivery Time | 7 days after receiving payment |
Packing Style | Inside Foam + Carton (Fedex /DHL Delivery) |
Payment Term | Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500 |
