35kHz 900Watt Spot Welding Set
Original price was: $240.00.$200.00Current price is: $200.00.
17% Off
- For bulk order price please contact our sales expert.
- Poreless, high-density, military-grade piezoceramics
- Excellent electro-acoustic conversion efficiency
- Minimal thermal dissipation and power losses
- Large range of working temperature
- High reliablity
Description
| Electrical Specification | Data Result |
|---|---|
| Transducer Model No.: | 35kHz-900Watt-SET-T-8 |
| Frequency (Fs ± 0.5kHz) | 35 kHz |
| Shell/Conver’s Maximal Diameter: Maximum Height /Length: |
Φ50 mm 255 mm |
| Horn: | 8.0 /9.0 mm, standard: 8.0mm |
| Piezoceramic Ring Diameter (mm) | Φ30 mm |
| Piezoceramic Ring Quantity (pc) | 4 Pcs |
| Impedance (Ω) | Transducer : 3 Ω Whole set : 12 Ω |
| Capacitance (C±10%pF) | 8500 pF (P8 ) |
| Input Power (Watt) Max | Rated Power: 900 Watt |
| Amplitude (μmp-p) | Transducer : 50 μmp-p |
| Front Mass Metal | Cemented Carbide |
| Back Mass Metal | Aluminum Alloy |
| Joint Bolt /Gain size | M12 x1 |
| Net Weight (gram) | 413 gram |
| Total Height /Length (mm) | 255 mm |
| Remarks: Available optional accessaries: |
Titanium Horn /Sonotrode Ultrasonic Generator (CE) |
* Designed for 24×7 heavy duty working.
* Titanium Alloy Horn/Sonotrode
* Customized size welcome, OEM work welcome.

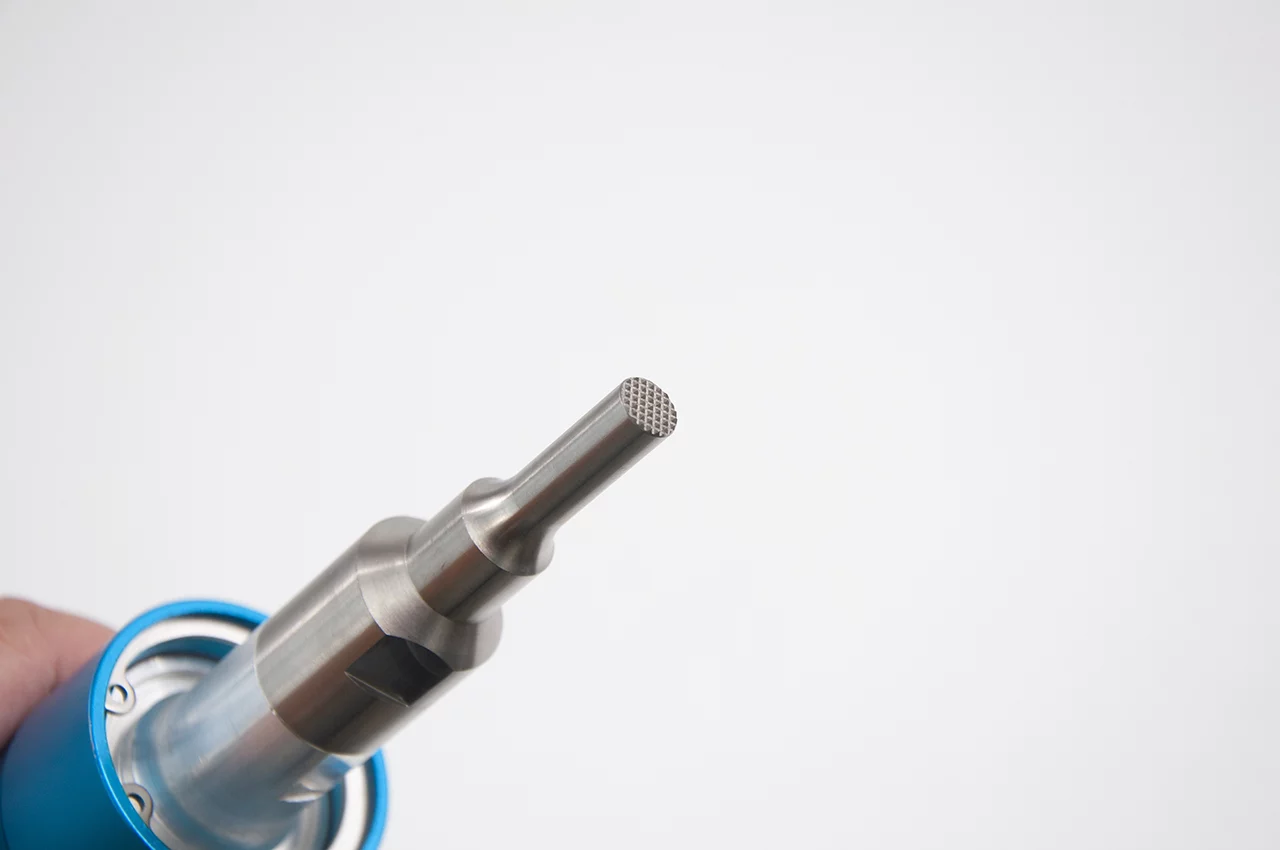

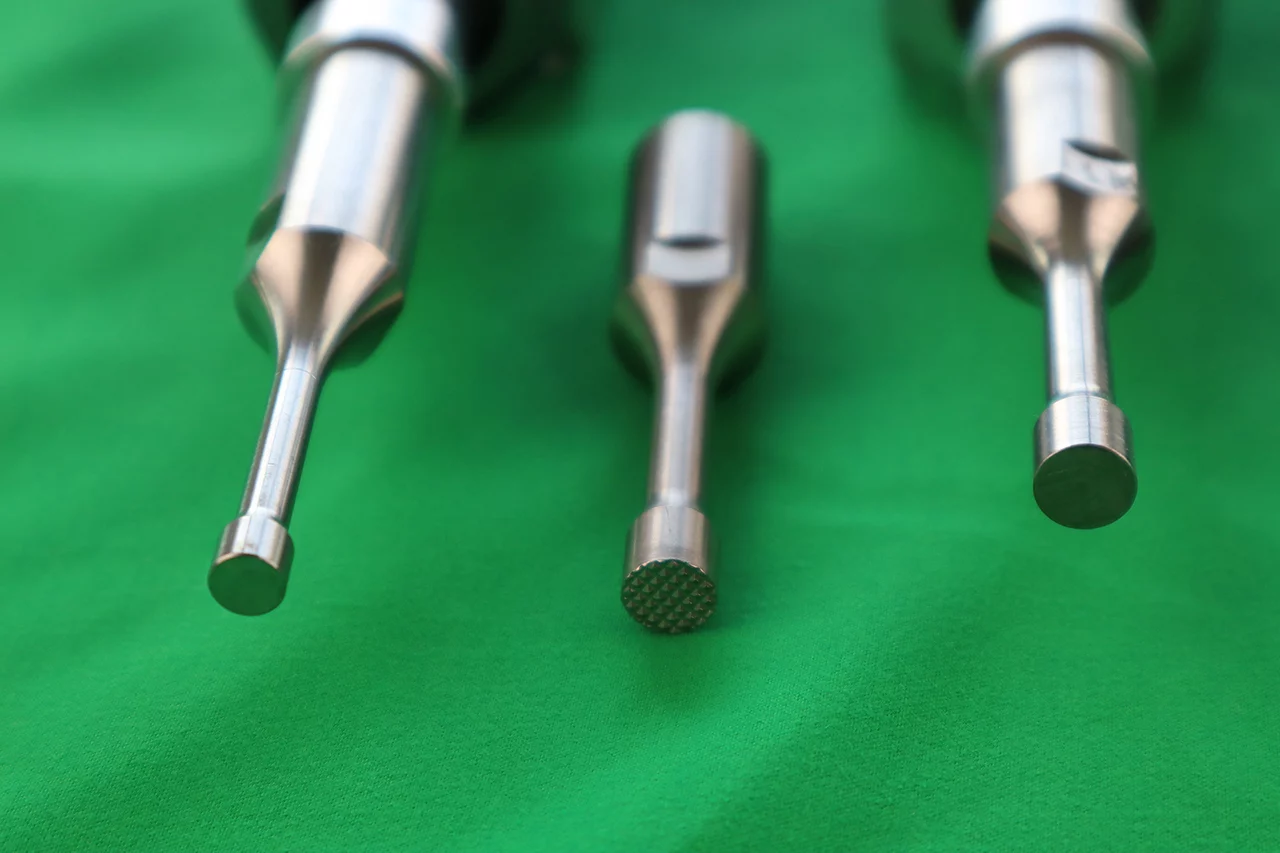

Flat /Diamond Pattern

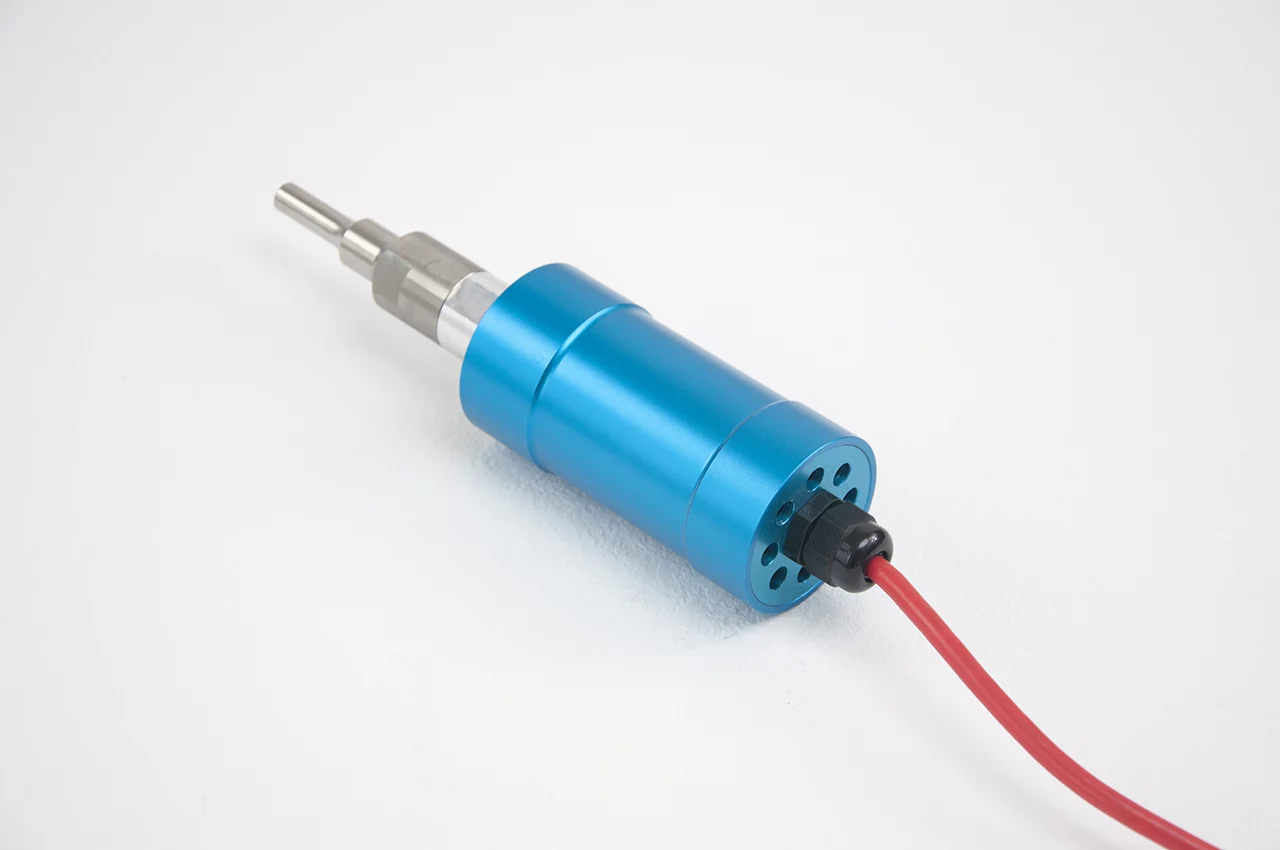

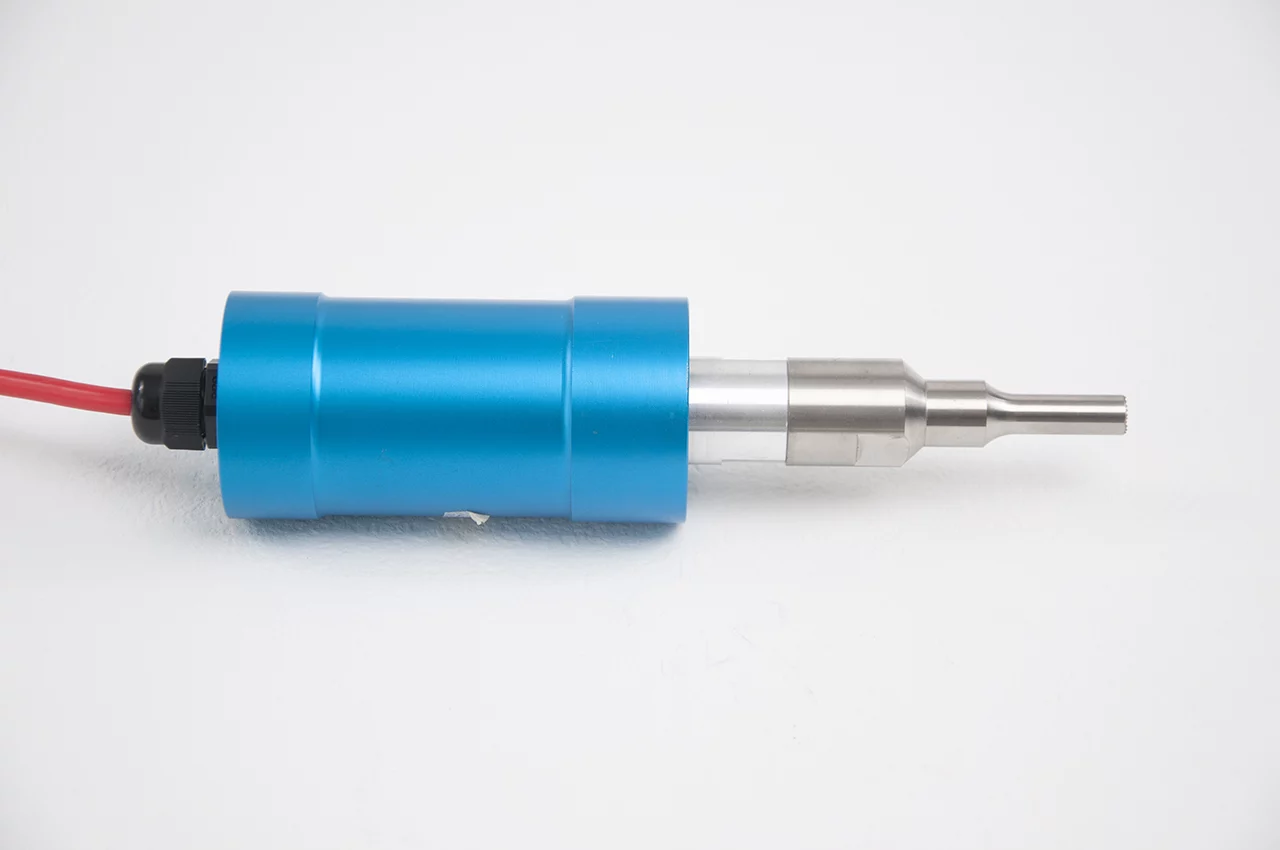

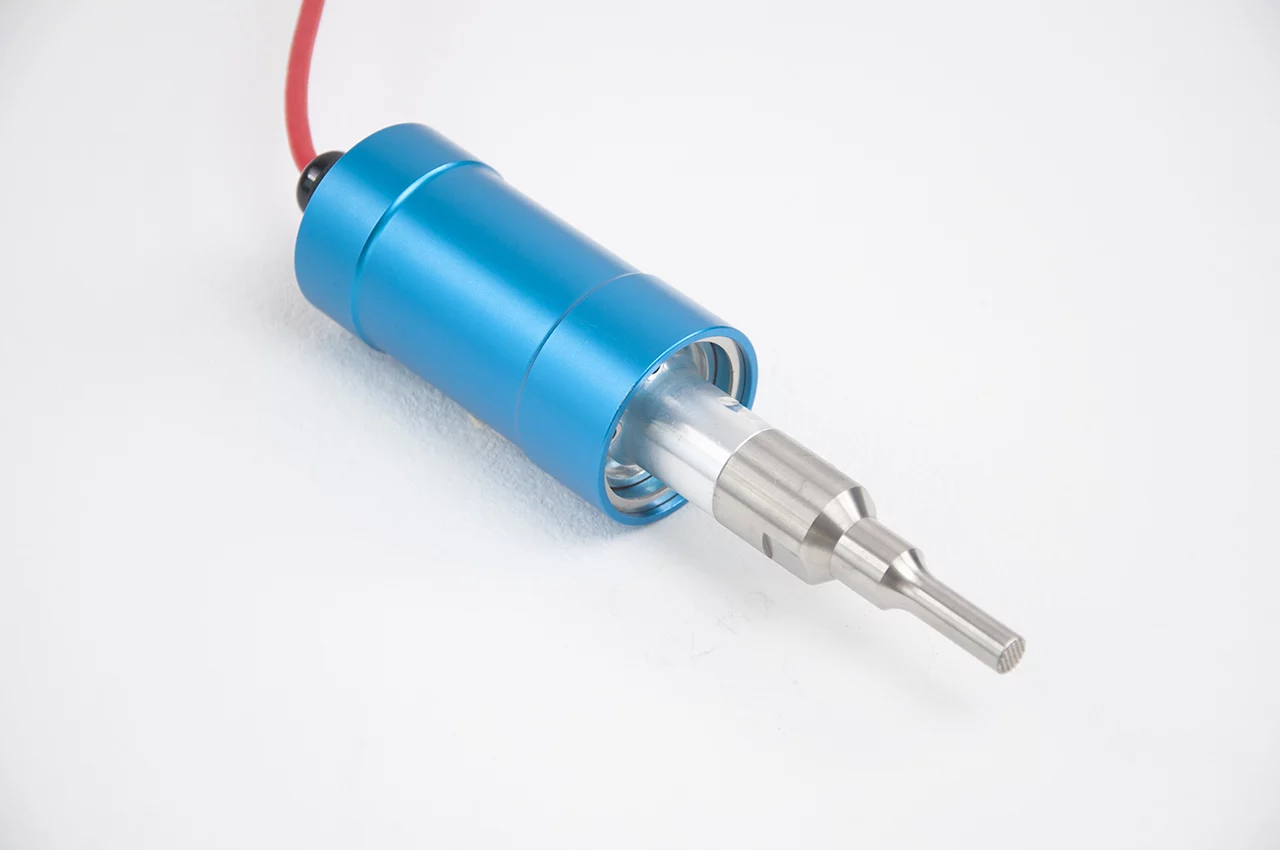

Aluminium Shell

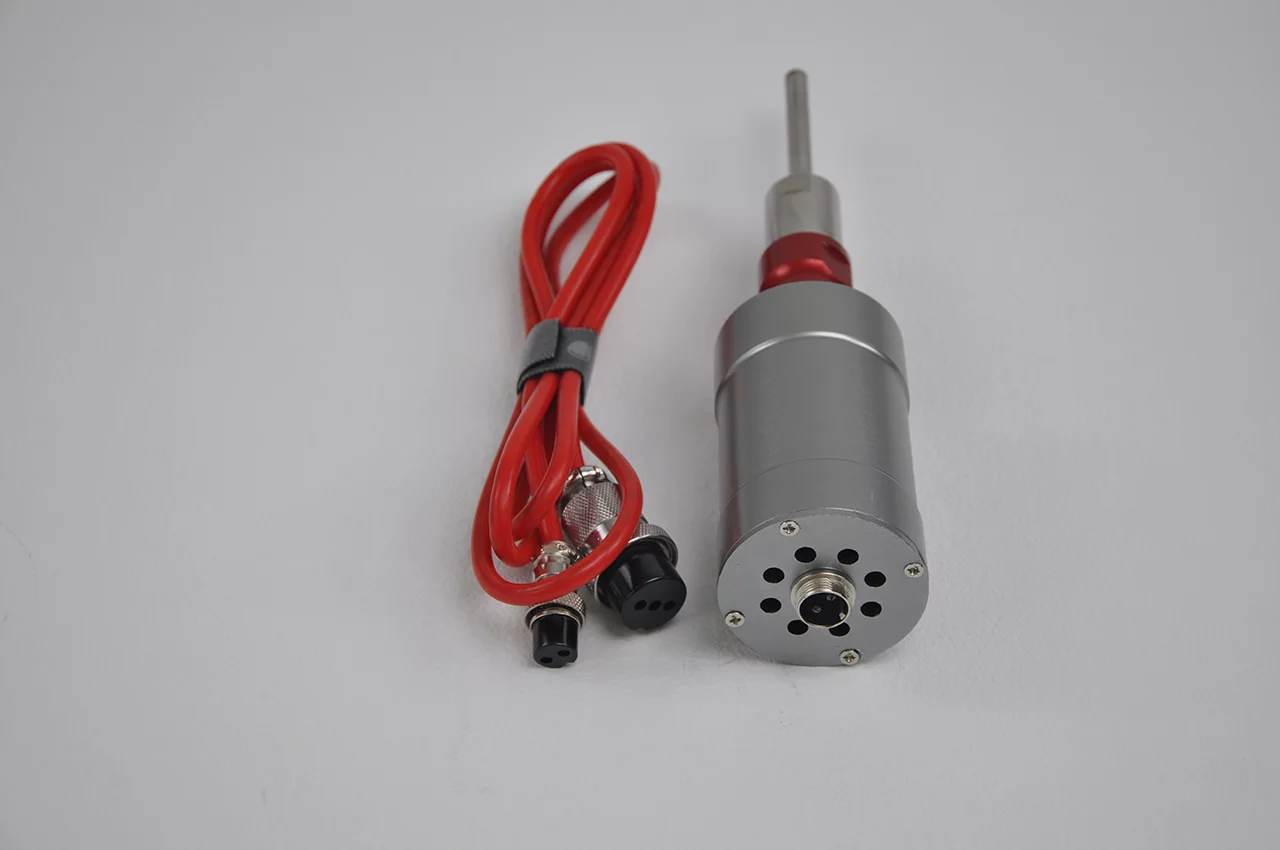

Aviation Connector
* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.
* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.
* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.
for more information, please click Additional information tab, or consult our expert.
Telphone No.: +86-510-84390688, Mobile & WhatsApp: +86-170-0524-8000 or send us email.
Additional information
| Weight | 0.43 kg |
|---|---|
| Dimensions | 26 × 5 × 5 cm |
| Delivery Time | 7 days after receiving payment |
| Packing Style | Inside Foam + Carton (Fedex /DHL Delivery) |
| Payment Term | Bank Transfer T/T for Order $500 & more, T/T or Paypal or West Union for Order less than $500 |
