Standard Ultrasonic Cutter

Sino Sonics offers a complete line of specialized equipment and components for tire/Honeycomb cutting applications. Ultrasonic tire/rubber /Honeycomb cutting provides superior cut integrity of the material versus any other mechanical means currently available. A supremely clean cut is achieved through ultrasonic vibrations so there is no sawing action, resulting in more uniformity and less stress on the material. The ultrasonic cutting process also provides advantages in regard to speed, safety, cost-effectiveness and smoothness of finished edges. Cutting tools are manufactured in-house by a precision wire EDM process that produces precision profiles and reduces tool stress for longer life. Sino Sonics provides full customization of OEM components, kits and horns.
  • Application: Honeycomb aluminum, ABS, PE, PVC, PC, acrylic, non-woven, neoprene, corrugated, plywood, fiberglass resin, cardboard, linen (linoleum), urethane, nylon, PP, etc. It can even cut Kevlar easily!
  • Principle: The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by the cutter. Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. The material to be cut does not stick to the blade and does not collapse or break. It has obvious effect on cutting frozen, viscous and elastic materials.
  • Functions: Automatic resonance point, automatic frequency sweep tracking in the frequency range of 19-26KHZ. Automatic amplitude compensation, which automatically works at the optimal frequency point and output point according to the fluidity of the sample. Independent on/off pulse with three modes of continuous use, pulse and timed continuous ultrasound.
  • Note: For knowing your requirements more clearly, please tell us the material type and thickness, and its shape.
Items Details
Power in 100 ~ 240v 50 ~ 60 Hz
Power output 1200  Watt maximum ( 600 watt standard)
Power adjustment 1% -100% | 1% progressive
Frequency 25 khz /real-time display (19-26KHz sweep frequency automatic tracking)
Operating Mode Programable, Pulse | Time | Continuous
User Program 10 groups (Settable Storable Real-time View of Work Status)

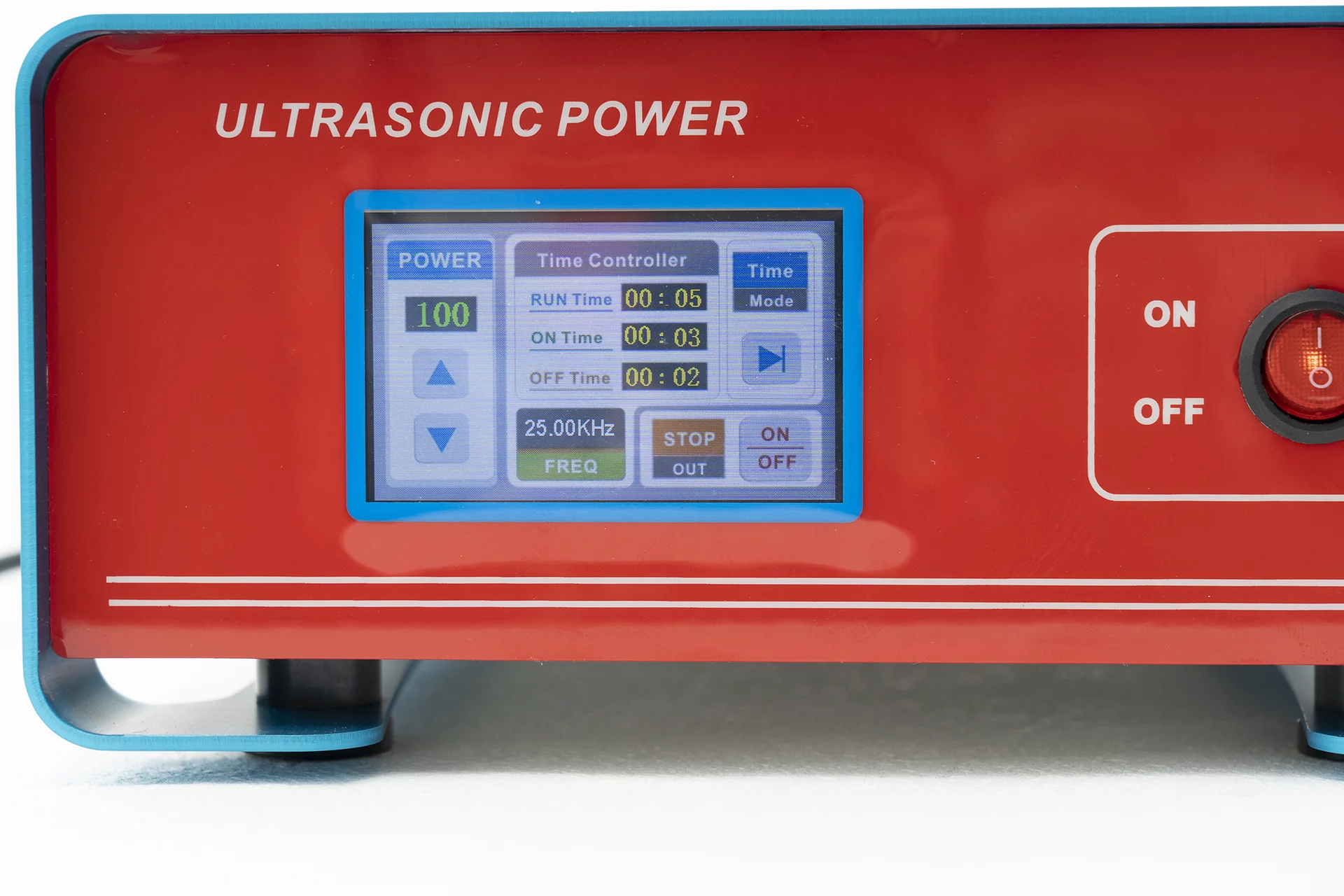

Special Feature 4.7″ Touch screen
Low heat generation, Suitable for long-term continuous work.
Blade sharper, Cutting speed faster.
The cutting knife head can be polished.
Cutting Blade High speed steel (Hard steel), Replaceable blade.
Blade size, please contact our sales.

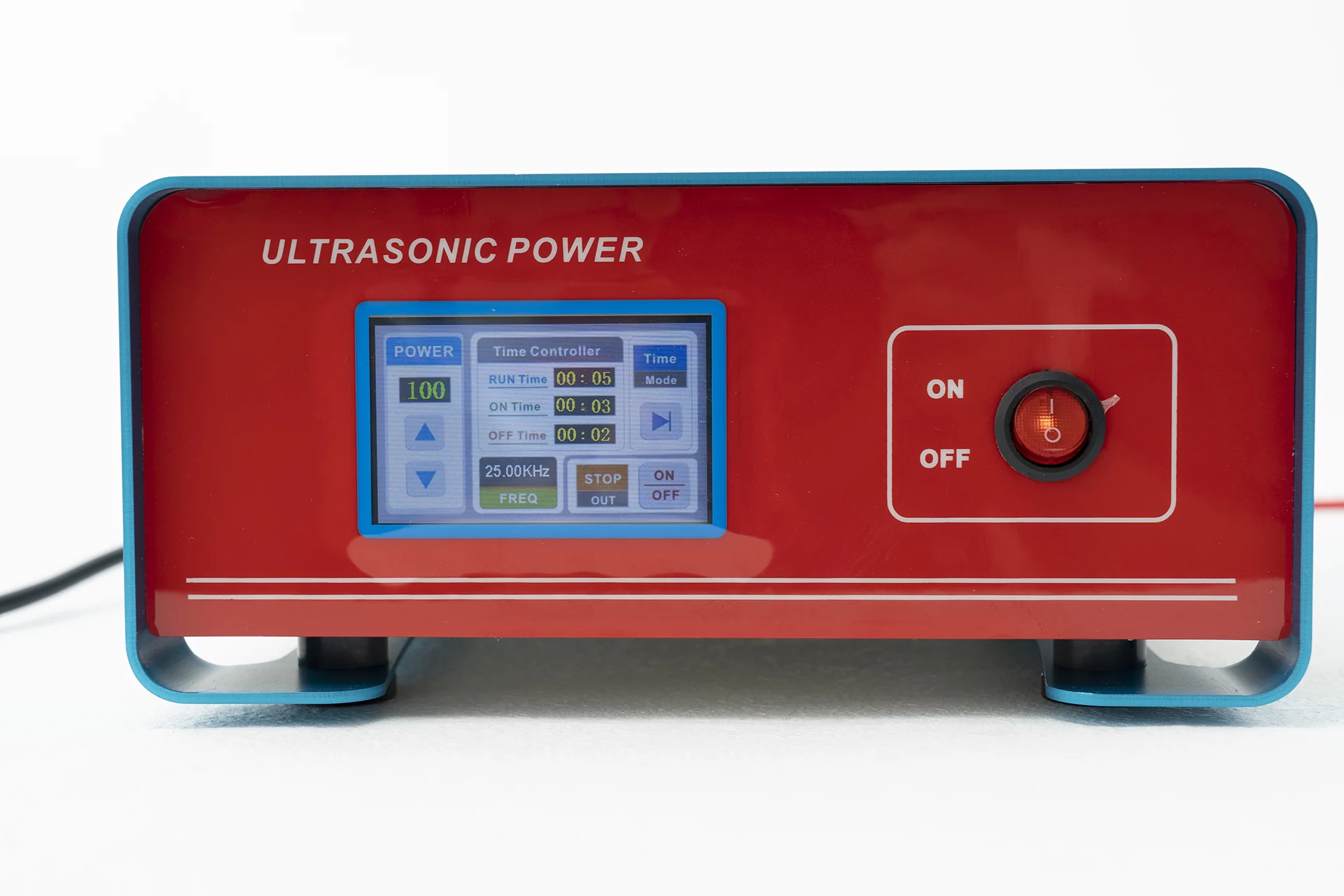

Packing: 1 Set ultrasonic generator 25k, 1200 watt.
1 Pc ultrasonic cutter with mounted blade.
1 Pc power in plug & wire
3 Pcs fuse wire.
1 Pc connect cable for cutter ( 3 meter)

Ultrasonic cutting for plastic /fibreboard materials

Cutting & Sealing for Non-woven cloth

Photo Gallery for the Rotary Ultrasonic Cutter

Abundant Functions

  • Automatic resonance point, automatic frequency sweep tracking in the frequency range of 19-26KHZ.
  • Automatic amplitude compensation, which automatically works at the optimal frequency point and output point according to the fluidity of the sample.
  • Independent on/off pulse with three modes of continuous use, pulse and timed continuous ultrasound.

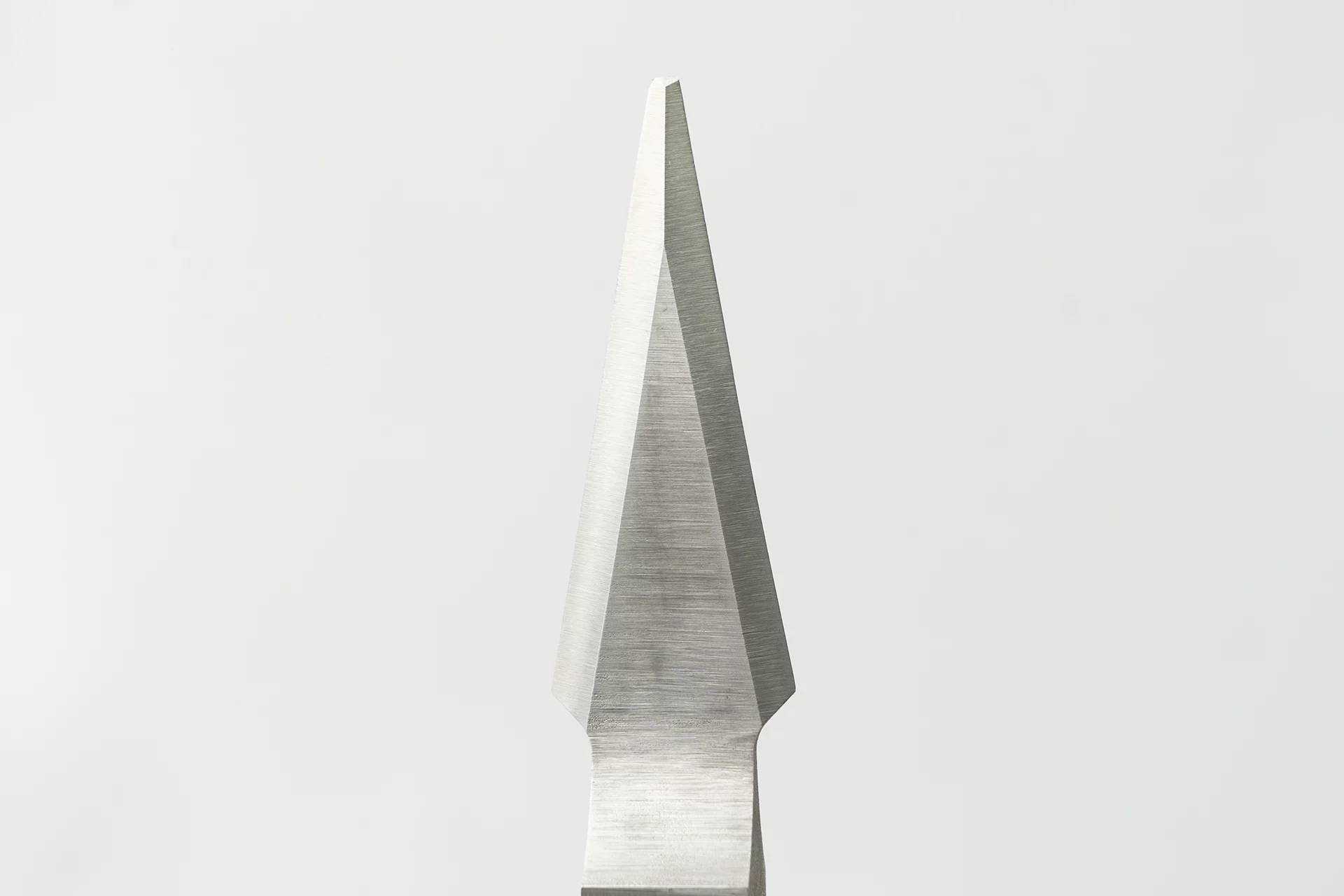

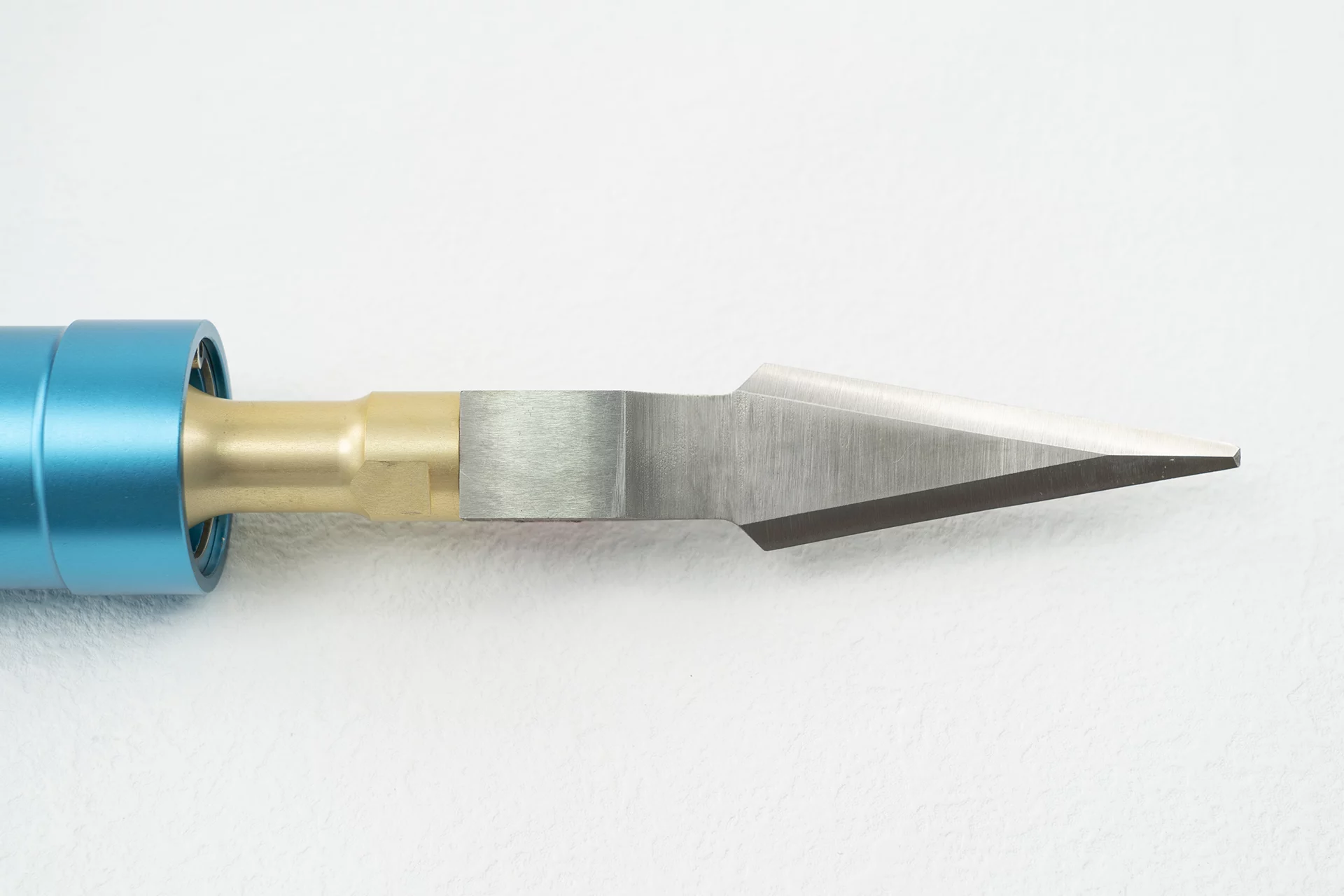

High Quality Knife Head

  • Standard Amplifier Probe: Aluminum alloy material, T1-6AL-4V
  • Cutter Head: SK51 Die Steel / Titanium Alloy
  • Please note that the cutting knife head is consumable and its service life about is 3-6 months.

Extensive Application

  • The ultrasonic cutter can cut many materials such as ABS, PE, PVC, PC, acrylic, non-woven, neoprene, corrugated, plywood, fiberglass resin, cardboard, linen (linoleum), urethane, nylon, PP, etc.
  • It can even cut Kevlar easily!
  • Suitable for cutting honeycomb aluminum, but not for cutting aluminum plate.

Working Principle

  • The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by the cutter.
  • Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced.
  • The material to be cut does not stick to the blade and does not collapse or break.
  • It has obvious effect on cutting frozen, viscous and elastic materials.
  • Please contact our sales for more information
